Setup - Parcels - Balíkobot Integration

Update: 23.09.2026

There are several areas that need to be set up for the AC Parcel addon to work properly. The addon is initially set up using the wizard and then the settings can be changed manually.

Addon settings areas

• Numbered series
• Expedition places
• Parcels settings
• Shipping agents
• Location Settings
• Shipment parameters
• Print Settings
• Payment settings (COD)
• Automatic updates
• Settings in the Sandbox environment

Other code lists (Carrier Services, Handling Units and Carrier Branches) are downloaded from the Balíkobot API.

Important

To prevent users from encountering issues when using Business Central, be sure to configure the module’s permissions before activating its functionality. The following permission sets are available upon installation of the module:

Set Name	Description
PARCELS_READ_ACC	For read only
PARCELS_EDIT_ACC	For general use
PARCELS_SETUP_ACC	For configuring the module’s behavior
PARCELS_ADMIN_ACC	For general use and also configuring

Setting up Parcels using the wizard

1. Choose the icon, enter Assisted Setup and then choose the related link.
2. Select Shipment Settings
3. After reading the instructions, click Next.
4. If you want you can import the RapidStart package manually, or you can click Next and the package will download and import itself.
5. Next, create a new shipping location using the New button and fill in the fields:
   • Code
   • Username
   • Password
6. You can also fill in additional information:
   • Description
   • Name
   • Address
   • City
   • Postcode
7. In the Expedition Places, select the newly created record.
8. In the next step, select the location created by the shipping location and click Next.
9. Create a new Shipping Agent using the fields:
   • Code
   • Name
   • Integration services: Balíkobot.cz
   • Balíkobot code
   • Allow multiple packages - YES
   • Master data synchronization - YES
10. Select the Synchronize master datafunction.
11. In the Number Series field, select the appropriate number series for shipments.
12. Once you have filled in everything and clicked Finish, the assisted guide will close and the master data will begin to synchronize.

Manual adjustment of settings

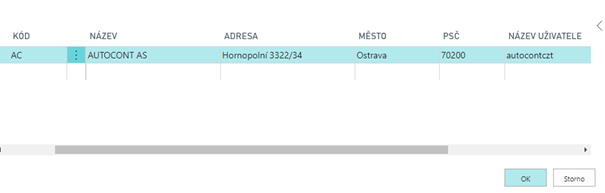

Expedition places

The Expedition Places are locations of your warehouses from where shipments are dispatched. A user can have several expedition places. A different API is required for each expedition place, and the expedition place is associated with one location of your company.

1. Choose the icon, enter Expedition Places and then choose the related link.
2. Choose the function New.
3. Insert Code for expedition place, description, address and User Name and password to yours API.
4. Close the list of Expedition places.

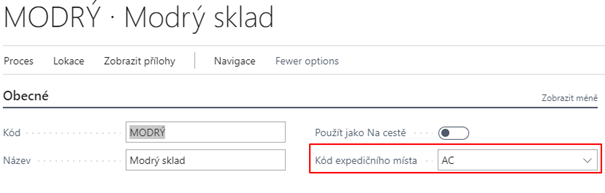

Location Settings

On the tab of the given location it is necessary to select the dispatch place that is connected with the given API. If there are more locations, it is necessary to set the appropriate dispatch point for each. This serves to reduce the error rate of users so that they cannot combine documents with different shipping points into the shipment.

To assign a shipping location to a location, you need to set the Expedition Places Code.

1. Choose the icon, enter Locations and then choose the related link.
2. Open the desired location tab
3. Fill in Expedition Places Code field on the General tab

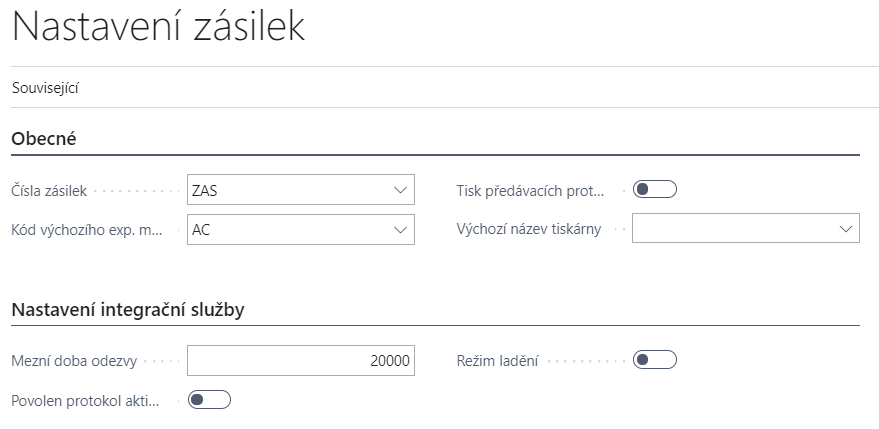

Parcels settings

Basic Package Setup must be made on the Parcels Settingspage.

Parcels Management Setup page contains:

• Parcels No. - Specifies the No. Series for parcels.
• Default Expediton Place Code - Specifies the API credentials and shipment location from where the parcel will be shipped.
• Print Handover After Order – Automatic print of Handover protocols after collection order.
• Default Printer Name – Specifies the printer for printing labels
• Limit Response Time – Specifies the timeout of communication.
• Activity Log Enabled - Starts activity log tracking.
• Debug Mode – Allows you to intercept messages in communication with the service
• Automatic master data synchronization - Runs a procedure on the job queue that updates all data from the Package in a certain time period.
• Automatic Transportation Status Update - Runs a procedure on the job queue that updates the shipment transfer status for the last month in a specific time period.

Basic settings are made using the application setup wizard. The other tables are downloaded and filled after master data synchronization is enabled. These data are updated manually using the "Resynchronize master data" function.

Basic settings of Parcels - Balíkobot integration

To start the balíkobot functions, you need to make the following settings:

1. Choose the icon, enter Parcels setup and then choose the related link.
2. Select a number series for shipments
3. Select default Expedition Places
4. Enable or disable automatic printing of collection reports
5. Enable or disable Activity Log

Shipping Agents setup

The basic codebook is loaded using the RapidStart package for Business Central. This package contains data that is not downloaded from the Balíkobot API:

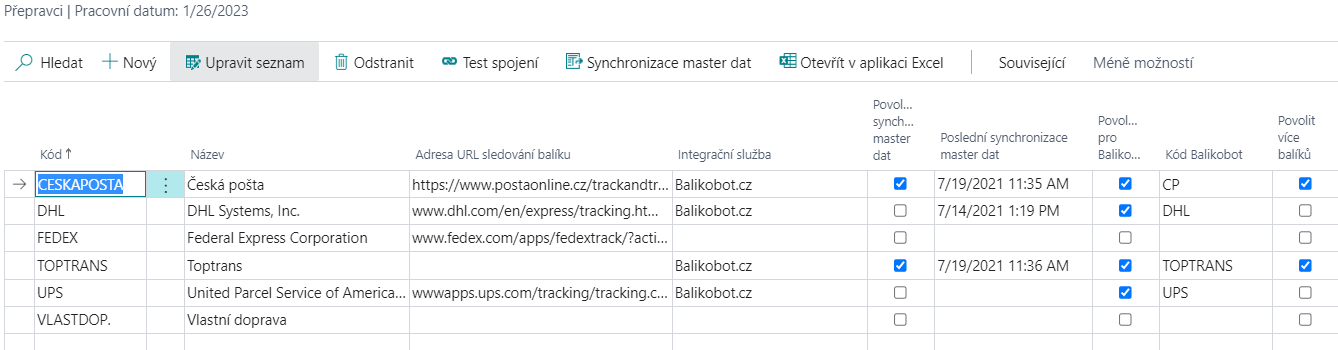

Table of Shipping Agents

Other tables are downloaded and filled after synchronization of master data and in the Shipping Agent table. The update of this data is done manually using the "Resynchronization of master data" function.

The overview also includes carriers that you do not have configured with Balíkobot. Additional data is not imported for such data (see below).

On the carrier overview, there are several fields to set up

• Integration ServiceIntegrační služba – Determines through which integration service the shipping agent is used (in this case Balikobot.cz)
• Enable master data synchronization – Master data may become available after switching on
• Last master data synchronization – Date of last master data synchronization
• Enabled for Balíkobot - Carrier is enabled and can be used
• Allow multiple packages - When creating a shipment, the feature allows you to create multiple packages within one shipment.
• Pallet transport
• Number of handling units - For pallet transport it is possible to set more handling units.
• Branch only – Specifies that the carrier serves only as a pickup point.
• Maximum address length – set the address length for the selected carrier.

Functions over shipping agents

• Connection Test – Test communication between the integration service and Business Central
• Master data synchronization – Starts master data synchronization
• Shipping Agent Services - Table of services of individual shipping agent
• Shipping Agent Branches - Table of locations, where customers can take goods from the carrier
• Handling units - Table of pallet handling units
• ADR units of the carrier – Table of ADR units of the carrier

If you add a carrier after the first setup has been made using assisted setup, you must fill in the fields correctly:

• Code
• Package Tracking URL
• Integration service
• Balíkobot code

Then you need to use the Synronization function of master data!

Set up Shipping Agent Services

Shipping Agent Services are downloaded automatically using the Balikobot API. It is possible to force certain settings for individual Shipping Agents services. To set it up, you must:

1. Choose the icon, enter Shipping Agents and then choose the related link.
2. Select the desired carrier from the list and select Shipping Agent Services feature
3. Fill in the fields on the following page as needed:
   • Enabled for Balikobot - The service can be used (enabled by default)
   • Enforce Shipment Weight
   • Force shipment volume
   • Enforce Shipment Price
   • Force cash on delivery
   • Enforce shipment variable symbol
   • Weight on line - Weight must be filled in the shipment line
   • Services of ČP – Only for Czech Post service - a long text string of postal services above the parcel

Balikobot API settings

This system table allows you to configure extended carrier settings. These are settings for API communication, where you can select communication versions and more for selected carriers.

From an admin point of view, there is an option to set the shipping agent code for communication in case of changes from Balíkobot (Shipping Agent API Code) when the API shipper name is longer than 10 characters (for example DHL Freight EuroConnect, which had the API name "dhlfreight" and now uses "dhlfreightec").

Shipment parameters

Parameters for individual shipping agents are downloaded from the package package API

Payment method settings - Cash on delivery

To set up and use the cash on delivery function, it is necessary to set up booeal Cash on delivery on the payment method.

1. Choose the icon, enter Payment Method and then choose the related link.
2. In the overview, check the Cash on delivery option.
3. Close the payment method overview.

Print Settings

PDF reader

You need to have a PDF reader installed to print labels. To work with labels, we recommend Foxit pdf and also have it set as the default program for PDF files.

Print Format Selection - Client Zone

The basic step in setting up label printing is to define how the PDF with labels will be generated by Package. In the client zone (https://client.balikobot.cz/), the user must set whether to print in full page format or according to positions on A4 size paper. It all depends on what printer it will be printed on. The label printing position does not need to be selected for printing to the label printer.

Printer selection

To set up label printing, you need to set the report ID and assign a printer to the user. The Print Labels feature is set to print to a defined printer.

To define a printer, it is necessary:

1. Choose the icon, enter Printer Selections and then choose the related link.
2. Choose New.
3. Select User ID, Report ID 52068430, and Printer Name

Printing of the handover protocol is printed automatically after ordering the collection. If the user does not want automatic printing, just turn off Boolean - Printing handover protocols in the Balíkobot Settings. Printing is done from the Default Printer according to your device. Alternatively, if you have the default printer set in Printer Selections as the rest of your print reports.

Automatic updates

Automatic master data update

The automatic update of the master data starts a procedure on the job queue, which updates all data from Balikobot in a certain period of time (By default on Sunday at 14:00).

To turn on this feature, follow these steps:

1. Choose the icon, enter Parcels setup and then choose the related link.
2. In Parcels Management Setup, turn on "Run Master Data Sync. Task".
3. The user will be prompted to create and open a new job queue item that will be in the "Ready" state.
4. After that, you can close the settings.

Automatic update of the transport status

Automatic shipment status update triggers a procedure on the job queue that updates the shipment shipment status for the last month over a period of time.

To turn on this feature, follow these steps:

1. Choose the icon, enter Parcels setup and then choose the related link.
2. In Parcels Management Setup, turn on "Run Track Status Update Task".
3. The user will be prompted to create and open a new job queue item that will be in the "Ready" state.
4. After that, you can close the settings.

Settings in the Sandbox environment

Runtime deadlock

When setting up the add-on with assistance, the message "The request was blocked by the runtime" may be displayed.

To resolve this issue, follow these steps:

1. Choose the icon, enter Extension Management and then choose the related link.
2. The Installed Extensions page opens.
3. Select the line extension Parcels and then use the action Configuration.
4. On the Extension Configuration page, enable the Enable HttpClient requests switch.
5. You can then close the page and run the Guided Wizard again.

PaperLess Trade settings

Turn on Paperless Trade at the carrier

Paperless Trade is used to send an electronic invoice (in the case of a pro-forma invoice) for customs clearance.

To set it up correctly, follow these steps:

1. Choose the icon, enter Shipping Agents and then choose the related link.
2. On the carriers overview, select the carrier for which you want to turn on the service.
3. To turn on the service, select the Paperless Trade field.
4. After setup, you can close the page

Automatically attach an invoice to a shipment

For Paperless Trade to work properly, you must attach a PDF file of the invoice (pro-forma invoice) to the shipment.

In the case of creating a shipment from a billed sales invoice, it is possible to generate a document and attach it automatically when creating the shipment. To make the correct settings, proceed as follows:

1. Choose the icon, enter Shipping Agents and then choose the related link.
2. In the carriers overview, select the carrier for which you want to turn on automatic document creation.
3. To turn on automatic PLT document creation, select the Create PLT Documentfield.
4. Once set up, you can close the page.

Balikobot Integration Events

The Codeunit 52068440 BalikobotAPIv2Events_aci publishes integration events (IntegrationEvent) that allow modifying request/response data when calling the Balikobot API v2 and adding custom logic.

Request/Response events for API methods

Each operation has a pair of events:

• OnRequest – called before sending the request, allows modifying the JSON object in RequestJsonData
• OnResponse – called after receiving the response, allows reading the JSON object ResponseJsonData | Event | Parameters | When it is called | |---|---|---| | OnCheckRequest | var PackageData: Record BalikobotPackageData_aci
var RequestJsonData: JsonToken | Before sending the request of the CHECK method – allows modifying/supplementing the data being sent. | | OnCheckResponse | var PackageData: Record BalikobotPackageData_aci
ResponseJsonData: JsonToken | After receiving the response of the CHECK method. | | OnAddRequest | var PackageData: Record BalikobotPackageData_aci
var RequestJsonData: JsonToken | Before sending the request of the ADD method – allows modifying/supplementing the data being sent (e.g. adding carrier-specific attributes). | | OnAddResponse | var PackageData: Record BalikobotPackageData_aci
ResponseJsonData: JsonToken | After receiving the response of the ADD method (shipment created). | | OnDropRequest | var PackageData: Record BalikobotPackageData_aci
var RequestJsonData: JsonToken | Before sending the request of the DROP method (shipment cancellation). | | OnDropResponse | var PackageData: Record BalikobotPackageData_aci
ResponseJsonData: JsonToken | After receiving the response of the DROP method. | | OnOrderRequest | var PackageData: Record BalikobotPackageData_aci
var RequestJsonData: JsonToken | Before sending the request of the ORDER method (pickup order). | | OnOrderResponse | var PackageData: Record BalikobotPackageData_aci
ResponseJsonData: JsonToken | After receiving the response of the ORDER method. | | OnLabelsRequest | var PackageData: Record BalikobotPackageData_aci
var RequestJsonData: JsonToken | Before sending the request of the LABELS method (bulk PDF with labels). | | OnLabelsResponse | var PackageData: Record BalikobotPackageData_aci
ResponseJsonData: JsonToken | After receiving the response of the LABELS method. | | OnB2ARequest | var PackageData: Record BalikobotPackageData_aci
var RequestJsonData: JsonToken | Before sending the request of the B2A method (return/collection shipment). | | OnB2AResponse | var PackageData: Record BalikobotPackageData_aci
ResponseJsonData: JsonToken | After receiving the response of the B2A method. | | OnTrackV2Request | var PackageData: Record BalikobotPackageData_aci
var RequestJsonData: JsonToken | Before sending the request of the TRACK v2 method. | | OnTrackV2Response | var PackageData: Record BalikobotPackageData_aci
ResponseJsonData: JsonToken
var StatusMessage: Record "Activity Log" temporary | After receiving the response of the TRACK v2 method – additionally contains a temporary table with the recorded tracking statuses (StatusMessage). | | OnTrackStatusRequest | var PackageData: Record BalikobotPackageData_aci
var RequestJsonData: JsonToken | Before sending the request of the TRACKSTATUS method. | | OnTrackStatusResponse | var PackageData: Record BalikobotPackageData_aci
ResponseJsonData: JsonToken | After receiving the response of the TRACKSTATUS method. |

Events for updating the shipment

Called after the result of the API call is written back to ParcelHeader_aci/ParcelLine_aci – suitable for follow-up business logic processing the responses from the Balikobot API.

Event	Parameters	When it is called
OnAfterUpdateParcelAfterAdd	var ParcelHeader: Record ParcelHeader_aci var ParcelLine: Record ParcelLine_aci var PackageData: Record BalikobotPackageData_aci	After updating ParcelHeader/ParcelLine with data from the ADD method response.
OnAfterUpdateParcelAfterDrop	var ParcelHeader: Record ParcelHeader_aci var ParcelLine: Record ParcelLine_aci var PackageData: Record BalikobotPackageData_aci	After updating ParcelHeader/ParcelLine with data from the DROP method response.
OnAfterUpdateParcelAfterOrder	var ParcelHeader: Record ParcelHeader_aci var ParcelLine: Record ParcelLine_aci var PackageData: Record BalikobotPackageData_aci	After updating ParcelHeader/ParcelLine with data from the ORDER method response.

Usage notes

• RequestJsonData is passed as var JsonToken – a subscriber can replace/modify it before the HTTP request is sent (it typically contains a JsonObject/JsonArray with the "packages" key).
• ResponseJsonData is read-only – used to react to the result of the call, not to modify it.
• PackageData is always available as var Record BalikobotPackageData_aci – contains the currently processed shipment/shipments data.

List of Balikobot Attributes Not Supported in the Parcels Application

(as of 1 Sept 2026)

Attribute	Data Type	Description	Carriers
account_number_duties	string	FedEx account of the duty/tax payer. Required for third-party customs cases CPT/FCA.	fedex
account_number_shipping_charges	string	FedEx account of the freight payer. Required for third-party freight cases FCA/EXW.	fedex
adr_content.adr_accessibility	string	Whether the dangerous goods are accessible during transport (ACCESSIBLE/INACCESSIBLE). Required for DOT, IATA, ORMD.	fedex
adr_content.adr_battery	bool	Battery shipment flag.	fedex
adr_content.adr_cargo_aircraft	bool	Cargo aircraft only (CAO).	fedex
adr_content.adr_hazardous	string/bool	Hazardous materials.	fedex; tnt
adr_content.adr_name_en	string	English name of the hazardous substance (supplement to adr_name).	dachser
adr_content.adr_other	bool	Other regulated materials.	fedex
adr_content.adr_package_type	string	Packaging type for dangerous goods (ADR) – not described in detail in the specification.	dbschenker
adr_content.adr_regulation	string	Type of dangerous goods regulation: ADR (EU road transport), DOT (US Dept. of Transportation), IATA (air transport), ORMD (Other Regulated Materials–Domestic).	fedex
adr_content.adr_reportable_quantities	bool	Reportable quantities.	fedex
adr_content.adr_small_quantity	bool	Small quantity exception. Applies only to shipments with a single piece (order_number = 1).	fedex
battery_data (object)	array	Required when shipping batteries – contains battery_packing_type, battery_regulatory_type, battery_material_type.	fedex
battery_data.battery_material_type	string	Battery material (e.g. LITHIUM_METAL).	fedex
battery_data.battery_packing_type	string	Battery packing type (example value: LOOSE).	fedex
battery_data.battery_regulatory_type	string	Battery regulatory type (e.g. IATA_SECTION_II).	fedex
branch_type	string	Required attribute when branch_id is filled in. Type of pickup point — allowed values: packstation, filialedirekt (also filialedirect). Germany shipments only.	dhlde
consign_password	bool	Sending true/"1" makes the API return, in the ADD response, a password for placing the shipment into the box. Can be set as default for all shipments in the client zone.	zasilkovna
content_data.content_eori	string	EORI number related to the given content item of the shipment (customs data).	zasilkovna
content_data.content_food_or_book	bool	Indicates whether the content is food or a book (different customs/tax treatment).	zasilkovna
content_data.content_price_eur	float	Price of the content item in EUR – used as the sum for price on shipments to Ukraine.	zasilkovna
content_data.content_quantity	int	Number of pieces of the given content item.	fedex
content_data.content_quantity_unit	string	Unit of measure for content_quantity.	fedex
content_data.content_volatile	bool	Indicates a volatile/flammable substance in the shipment content.	zasilkovna
content_produce_code	string	Required parameter for international shipments, e.g. "999".	magyarposta
country_reference	string	Reference number of the recipient's country. For Dachser/DB Schenker for PL, RO, BH, HU; for Raben only for RO. Max 35 (Dachser) / 99 characters (Raben).	dachser; dbschenker; raben
country_reference_type	string	Type of the reference number (for Raben, fixed value "UIT" for RO).	dachser; dbschenker; raben
customs_indicator	bool	Customs indicator – whether the shipment is under a customs regime (default false for EU, default true outside EU).	dachser
date_delivery	string	Planned delivery date of the shipment (format YYYY-MM-DD). Required for the additional "in time service!".	gw; gwcz
dcl_pdf	string	Customs declaration – required when shipping outside the EU if the goods are not customs-cleared by the carrier. Base64-encoded PDF.	dhlde
del_exworks_account_number	string	Account of the duty/freight payer for EXWORKS shipments (DHL Express: Billing Account Number; UPS: UPS Account ID; TNT: freight payment account; FedEx: duty/tax/freight payer account).	dhl; fedex; tnt; ups
eori	string	EORI number.	spring
eu_eori	string	EU EORI number.	spring
export_customs_declarant (object)	array	Details of the export customs declarant – who handles export customs clearance on the sender's side. Required if the shipment requires customs clearance.	dbschenker
export_customs_declarant.ecd_info (object)	array	Nested object with the declarant's full contact details – required if ecd_type = other.	dbschenker
export_customs_declarant.ecd_type	string	Values: notrequired, dbschenker, other.	dbschenker
gb_eori	string	UK EORI number.	spring
generate_invoice	bool	To generate an invoice with the carrier (from the sent data), send "1" or TRUE. For FedEx, does not apply to domestic services and is incompatible with invoice_pdf.	dhl; fedex
import_customs_declarant (object)	array	Determines who handles import customs clearance on the recipient's side. Required if the shipment requires customs clearance.	dbschenker
import_customs_declarant.icd_info (object)	array	Nested object with the declarant's full contact details – required if icd_type = other.	dbschenker
import_customs_declarant.icd_type	string	Values: notrequired, dbschenker, other.	dbschenker
invoice_type	string	Invoice type when sending a custom PDF invoice (PRO_FORMA_INVOICE or COMMERCIAL_INVOICE). If not sent, the default value from the client zone is used.	fedex
is_dutiable	bool	Indicates whether the shipment is subject to customs duty (not described in detail in the specification).	dhl
is_lockers	bool	Indicates delivery to a parcel locker/box (not described in detail in the specification).	airway; liftago
loading_length_pallets	float	Loading length in number of pallets. If not specified, the default value from the carrier configuration in the client zone is used.	raben
mu_sub_count	int	Number of pieces of the given mu_sub_type. Required only if mu_sub_type = YA.	geis
mu_sub_type	string	Handling unit subtype – used when stacking units on top of each other (pallets on pallets). Values: SE, SF, DF, KH, PEP, FP, PFP, PC, YA.	geis
p_o_number	string	P_O_NUMBER reference (max 30 characters).	fedex
payer	string	Shipment payer. Values: 1 – customer, 2 – sender, 3 – recipient.	fofr
rec_block	string	Block identifier (BG Speedy only).	pbh
rec_branch_id	string	ID of the recipient's branch/pickup point (not described in detail in the specification).	dhlparcel
rec_contact	string	Recipient contact information (additional contact field, not described in detail in the specification).	balikovna; ceskaposta; cp; dhl; geis; sp; toptrans; zasilkovna
rec_entrance	string	Entrance number (BG Speedy only).	pbh
rec_flat_number	string	Flat/apartment number (BG Speedy only).	pbh
rec_floor	string	Floor number (BG Speedy only).	gwcz; pbh
rec_house_number	string	House number + orientation number. If not sent, it is extracted from rec_street.	gls; pbh; sds; zasilkovna
rec_id	string	For shipping to German pickup boxes (Packstation/Postfiliale), the recipient must register on the DHL website and obtain a unique "Post Number".	dhlde; pbh; ppl
rec_tin (object)	object	Recipient details for customs clearance purposes – contains tin_number and tin_type.	fedex
rec_tin.tin_number	string	Tax identification number.	fedex
rec_tin.tin_type	string	Type of tax ID (e.g. BUSINESS_UNION).	fedex
return_barcode	bool	If used, returns the carrier's barcode information in the ADD response.	dpd; gls; ppl
return_final_carrier_id	bool	To return the shipment ID within the final carrier (carrier_id_final, and for Zásilkovna also track_url_final) in the ADD response, send TRUE/"1".	ppl; spring; zasilkovna
rma_association	string	The RMA_ASSOCIATION value will be printed on the label as a barcode for the return shipment (max 20 characters).	fedex
service_type_number	string	Numeric subtype/variant of the service type (not described in detail in the specification).	geis; ppl
shipper_vat	string	Payer's tax identification number (VAT).	spring
size	string	Required parameter for delivery to a parcel terminal/locker.	magyarposta; messenger
sm1_service	bool	SMS service (SM1) – notification with the option to send custom text (sm1_text).	gls
sm1_text	string	SMS text for the notification via sm1_service (max 160 characters, the variable #ParcelNr# can be used). If not sent, the text from the client zone is used.	gls
sm2_service	bool	PreAdvice Service (SM2) – SMS notification before shipment delivery.	gls
tax_country	string	Country of origin of the goods; required for the Romanian logistics tax if tax_subject = true.	zasilkovna
tax_subject	bool	Indicates whether the shipped goods are subject to the logistics tax (Romanian law effective from 1 Jan 2026).	zasilkovna

See also

Parcels
Productivity Pack
ARICOMA Solutions
